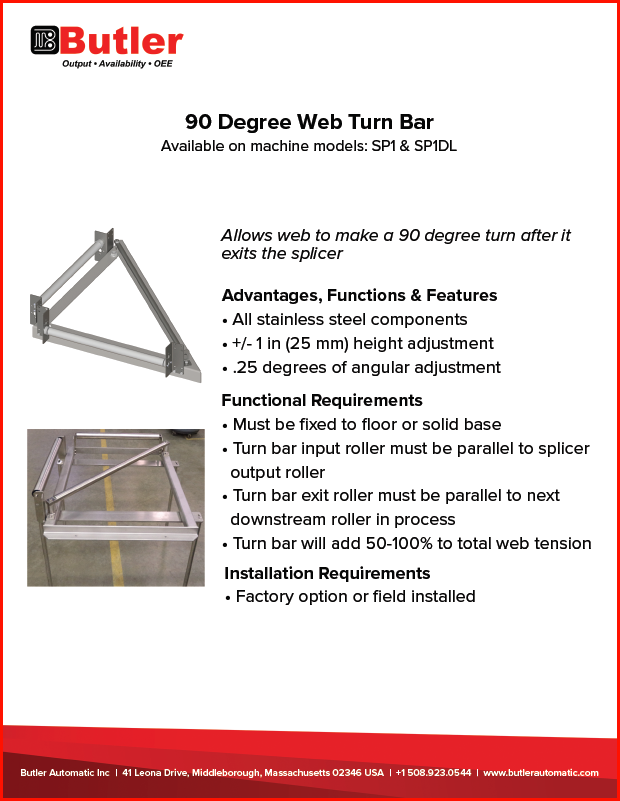

Butler Automatic 90 Degree Turn Bar

Butler Automatic 90 Degree Turn Bar

Available on machine models: SP1 & SP1DL

Allows web to make a 90 degree turn after it exits the splicer

Advantages, Functions & Features

  • All stainless steel components

  • +/- 1 in (25 mm) height adjustment

  • .25 degrees of angular adjustment

Functional Requirements

  • Must be fixed to floor or solid base

  • Turn bar input roller must be parallel to splicer output roller

  • Turn bar exit roller must be parallel to next downstream roller in process

  • Turn bar will add 50-100% to total web tension

Installation Requirements

  • Factory option or field installed
