Available on machine models: SP1 & SP1DL

Splice is actuated when a pre-applied contrasting colored tape on the web is detected by the end-of-roll sensor

Advantages, Functions & Features

  • Reduces web left on core

  • Opto-electric contrast sensor

  • Controlled via HMI

Functional Requirements

  • Minimum trigger tape dimensions are 1 in x 1 in (25.4 mm x 25.4 mm)

  • Color of tape must be contrast to background material/decoration

  • Trigger tape placement minimum of 8-10 feet (2.4 meters - 3 meters)

Installation Requirements

  • Factory option or field installed

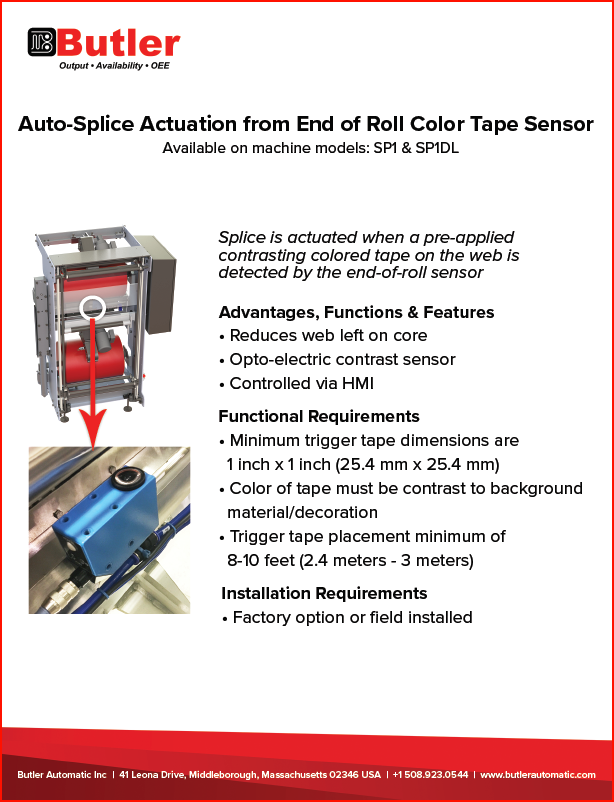

SP1 End of Roll Color Tape Sensor
