Machine models: SP1

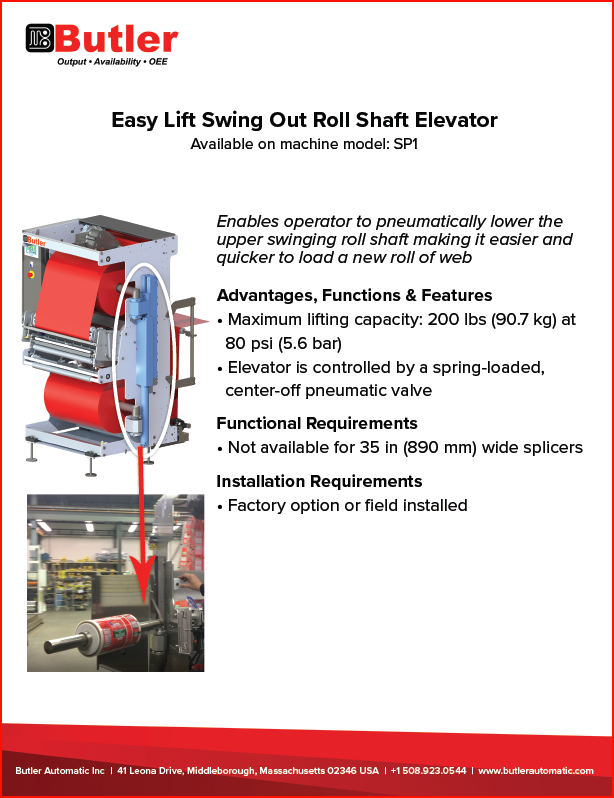

The SP1 Easy Lift Swing out Roll Shaft Elevator enables the operator to pneumatically lower the upper swinging roll shaft to a more accessible height, making it easier and quicker to load a new roll of film. The lift uses a pneumatic system capable of lifting up to 200lbs at 80psi

Functions and Features

Advantages:

  • Reduces time and effort required to load a new roll
  • Lighter  rolls can be loaded without the need for additional roll handling equipment

Functions:

  • Pneumatically lowers upper roll shaft to accessible loading position
  • Pneumatically  raises upper roll shaft to running position after new roll is loaded onto shaft
  • Maximum lifting capacity: 200 lbs at 80 psi

Features:

  • Pneumatic elevator controlled by spring-loaded, center-off pneumatic valve



Requirements

Functional:

  • Rolls of film must weigh less than 200lbs
  • Option  not available for 35” wide splicers

Installation:

  • Available as factory option or can be field installed by Butler Field Service
