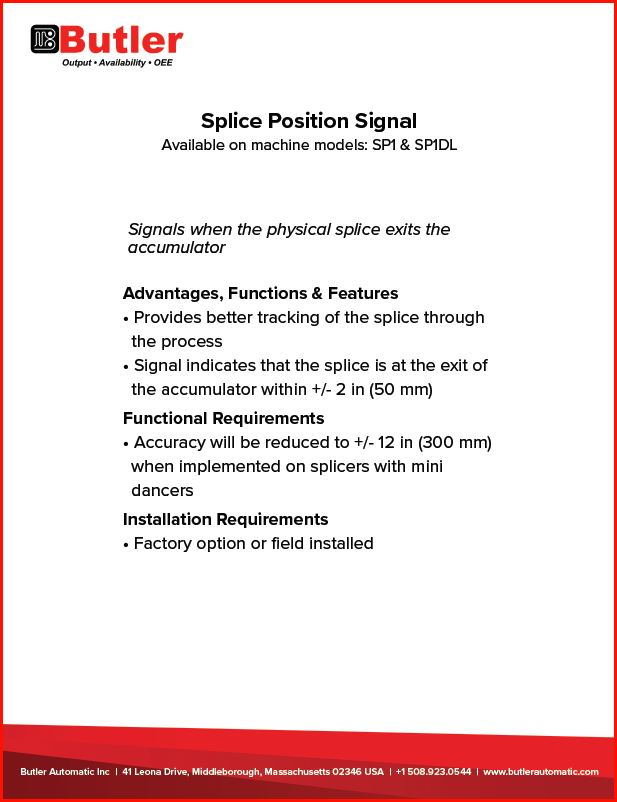

Machine models: SP1 & SP1DL

This option provides the customer an accessible signal that is activated when the physical splice exits the accumulator.  The signal is activated when the splice arrives at the last roll of the accumulator. The settings may be modified to provide the signal at other points (such as the exit idler) if required.

Functions and Features

Advantages:

  • Provides better tracking of the splice through the process

Functions:

  • Provides signal indicating that the splice is at the exit of the accumulator within ± 2in (50mm)

Features:

  • Normally open form C contact (output interface)


Requirements

Functional:

  • Accuracy will be reduced to ± 12in (300mm) when implemented on splicers with mini-dancers

Installation:

  • Available as factory option or can be field installed by Butler Field Service
